VersaTherm Storefront Framing
VersaTherm Storefront Framing

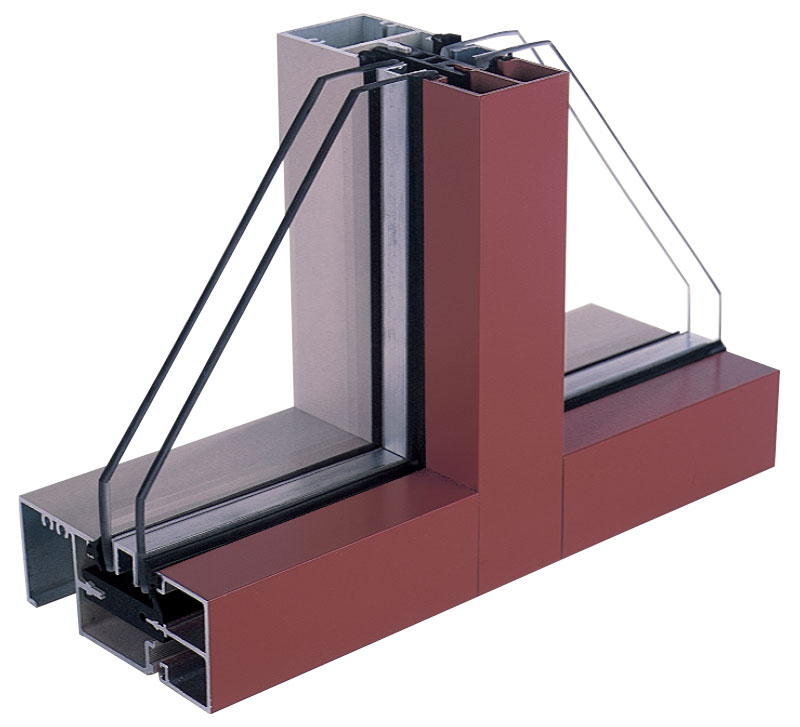

VersaTherm Storefront Framing is our most versatile and economical storefront framing system. The flexible design allows for on-site fabrication in applications ranging from punched openings to mall fronts. VersaTherm is available in a large selection of profiles. Snap on covers and backmembers, available in a variety of colors, allow for contrasting interior and exterior finishes. Finish options and glass positioning from frame exterior to center meet a wide range of aesthetic requirements.
Snap on covers and back members are “locked” together by a unique thermal barrier clip. This clip ensures that interior and exterior metal members remain separate while firmly connected, virtually eliminating the transference of frost and condensation. High-performance verticals and compatibility with Tubelite stock doors create a complete and truly versatile system.
EXAMPLES >

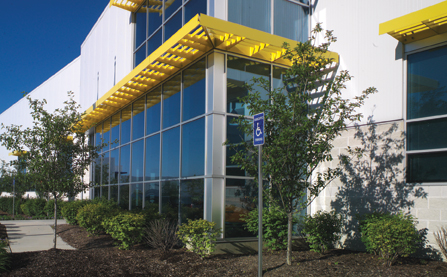

VersaTherm Storefront, 0A Clear Anodized; Owner: Karmann Manufacturing, Plymouth, MI; Architect: DeMattia Group; Tubelite Dealer: Calvin & Company
VersaTherm Storefront Framing
VersaTherm Storefront Framing
VersaTherm Storefront Framing is our most versatile and economical storefront framing system. The flexible design allows for on-site fabrication in applications ranging from punched openings to mall fronts. VersaTherm is available in a large selection of profiles. Snap on covers and backmembers, available in a variety of colors, allow for contrasting interior and exterior finishes. Finish options and glass positioning from frame exterior to center meet a wide range of aesthetic requirements.
Snap on covers and back members are “locked” together by a unique thermal barrier clip. This clip ensures that interior and exterior metal members remain separate while firmly connected, virtually eliminating the transference of frost and condensation. High-performance verticals and compatibility with Tubelite stock doors create a complete and truly versatile system.
Check out examples of our Storefront Products in the Gallery.
VersaTherm Storefront, 0A Clear Anodized; Owner: Karmann Manufacturing, Plymouth, MI; Architect: DeMattia Group; Tubelite Dealer: Calvin & Company
| VersaTherm Series Product Specifications* | ||||||||
| Application: Low and mid-rise commercial buildings including retail, office, healthcare, schools, etc. Description: 1-3/4” x (3-1/2” to 6-5/8”) field glazed, shear block screw spline storefront. |
||||||||
| Face Width: | Overall Depths: | Glass: | Air Infiltration: | Water Infiltration: | Structural: | U-Factor**: | CRF: | |
| 1-3/4″ | 3-1/2″ to 6-5/8″ | 1″ std. (1/4″) | 0.06 CFM/Ft.2 @ 6.24 PSF |
12 – Static | 40 PSF – Design | U-Factor Table | CRF-Value | |
| VersaTherm Series Product Specifications* | |
| Application: | Low and mid-rise commercial buildings including retail, office, healthcare, schools, etc. |
| Description: | 1-3/4” x (3-1/2” to 6-5/8”) field glazed, shear block screw spline storefront |
| Face Width: | 1-3/4″ |
| Overall Depths: | 3-1/2″ to 6-5/8″ |
| Glass: | 1″ (1/4″) |
| Air Infiltration: | 0.06 CFM/Ft.2 @ 6.24 PSF |
| Water Infiltration: | 12 – Static |
| Structural: | 40 PSF Design |

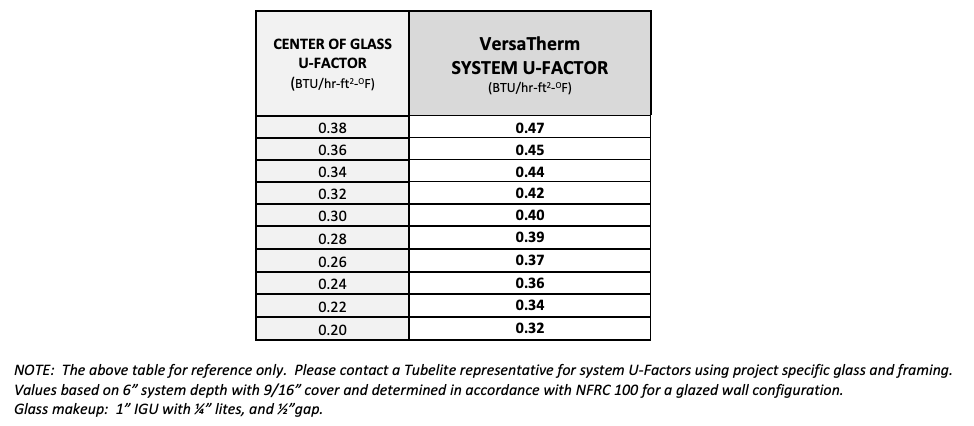

| U-Factor**: | U-Factor Table |

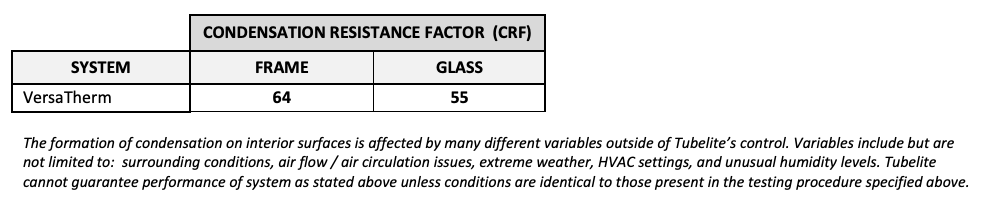

| CRF: | 64 (Frame); 55 (Glass) |
** U-Factor per NFRC 100: COG = 0.24 with warm edge spacer, 1-3/4” x 4-1/2” non-thermal frame.
| Guide Specification |  |
| Perimeter Sheet – DWG / PDF |  |  |
| Design Manual | |
| Installation Instructions | |
| Windload Charts (ASD format) | |
| Safety Data Sheets – SDS |  |
| Sample Warranty | |
| Air-Water-Structural | |
| CRF | |
| AAMA 507 | |
